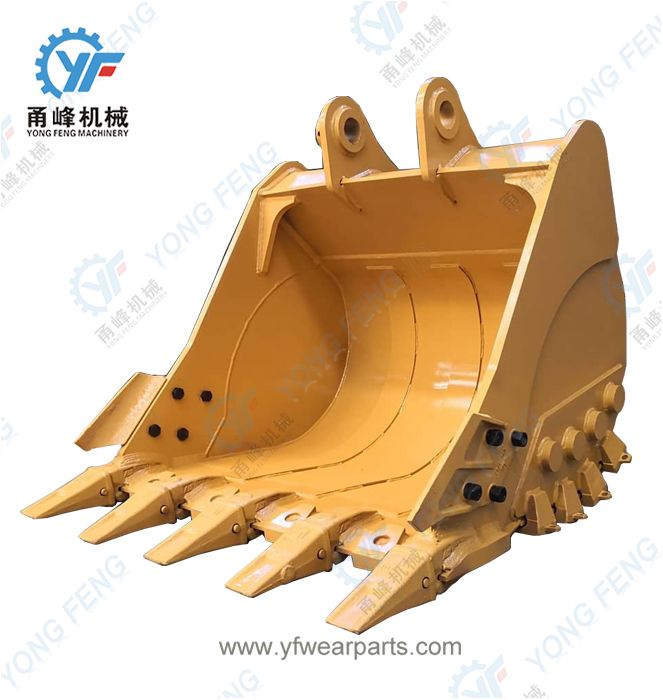

Caterpillar CAT323D HD Bucket

Caterpillar CAT323D HD Bucket

Description: Heavy duty rock bucket

Machine model: CAT323D

Applicable Industries: Energy & Mining, Building Material Shops, Construction work.

Categoria: Marca:


Caterpillar CAT323D HD Bucket

Quick Details

Material: Q345/NM400/HARDOX400

Color: Yellow or as customer's request

Place of Origin: Zhejiang, China

Brand Name: YF/OEM

Warranty: available, 12 months

Certification: ISO9001:2015

After-sales Service Provided: Video technical support, Online support

Production Process

Caterpillar CAT323D HD Bucket

Standard Bucket

Tonnes Bucket Type Width/mm G.E.T Bucket Teeth Bucket Pins Weight Kg
2T GP digging bucket 18''- 457mm J200 series 4 pcs Included 90
5T GP digging bucket 24''- 610mm J200 series 5 pcs Included 160
8T GP digging bucket 30''- 762mm J220 series 5 pcs Included 260
12T GP digging bucket 36''- 915mm J250 series 5 pcs Included 405
15T GP digging bucket 42''- 1067mm J250 series 6 pcs Included 570
20T GP digging bucket 48''- 1220mm J350 series 6 pcs Included 910
25T GP digging bucket 48''- 1220mm J400 series 6 pcs Included 1130
30T GP digging bucket 54''- 1372mm J450 series 5 pcs Included 1395

Heavy Duty Rock Bucket

Tonnes Bucket Type Width/mm G.E.T Bucket Teeth Bucket Pins Weight /Kg
12T Heavy duty rock bucket 30''-762mm J250 series 4 pcs including 388
15T Heavy duty rock bucket 36''-915mm J300 series 5 pcs including 600
18T Heavy duty rock bucket 42''-1067mm J350 series 5 pcs including 815
20T Heavy duty rock bucket 48''-1220mm J350 series 5 pcs including 1085
25T Heavy duty rock bucket 54''-1372mm J400 series 6 pcs including 1410
30T Heavy duty rock bucket 60''-1524mm J450 series 6 pcs including 1725
36T Heavy duty rock bucket 60''-1524mm J450 series 6 pcs including 1725
49T Heavy duty rock bucket 66''-1676mm J550 series 6 pcs including 2370

HD Bucket Rock Quarry Bucket

Tonnes Bucket Type Width/mm G.E.T Bucket Teeth Bucket Pins Weight /Kg
20T Extreme duty rock bucket 48''-1220mm J350 series Teeth * 5 pcs including 1280
L- shrouds * 10 pcs
25T Extreme duty rock bucket 54''-1372mm J400 series Teeth * 6 pcs including 1680
L- shrouds * 10 pcs
30T Extreme duty rock bucket 60''-1524mm J450 series Teeth * 6 pcs including 2125
L- shrouds * 12 pcs
36T Extreme duty rock bucket 60''-1524mm J450 series Teeth * 6 pcs including 2125
L- shrouds * 12 pcs
49T Extreme duty rock bucket 66''-1676mm J550 series Teeth * 6 pcs including 2755
L- shrouds * 12 pcs

Cleaning Bucket

Tonnes Bucket Type Width Edge Type Bucket Pins Weight /Kg
12T Ditching cleaning 1600mm Bolt-on edge Included 570
15T Ditching cleaning 1800mm Bolt-on edge Included 620
20T Ditching cleaning 2000mm Bolt-on edge Included 840
25T Ditching cleaning 2200mm Bolt-on edge Included 1170
30T Ditching cleaning 2400mm Bolt-on edge Included 1520

Skeleton Bucket

Tonnes Width/mm G.E.T Bucket Teeth Screen Spacing /mm Bucket Pins Weight /Kg
2T 24''-610mm J200 series 5 pcs 70*70 Included 90
5T 30''-762mm J200 series 5 pcs 70*70 Included 180
8T 30''-762mm J220 series 5 pcs 80*80 Included 250
12T 36''-915mm J250 series 5 pcs 80*80 Included 390
15T 42''-1067mm J250 series 6 pcs 90*90 Included 590
20T 48''-1220mm J350 series 6 pcs 90*90 Included 900
25T 48''-1220mm J400 series 6 pcs 100*100 Included 1160
30T 54''-1372mm J450 series 5 pcs 100*100 Included 1390

Quick Hitch Coupler

Tonnes Model Type Pin center distance mm Pin diameter /mm Weight /Kg
1-4T YFQC40 Mechanical 180-210 25-45 50
4-8T YFQC80 Mechanical 235-300 45-50 80
12-16T YFQC150 Mechanical 430-510 70-80 180
18-25T YFQC200 Mechanical 475-560 90 350
1-4T YFHQC40 Hydraulic 180-210 25-45 50
4-8T YFHQC80 Hydraulic 235-310 45-50 80
12-16T YFHQC150 Hydraulic 350-410 60-65 180
18-25T YFHQC200 Hydraulic 430-510 70-80 350
25-30T YFHQC250 Hydraulic 475-560 90-100 550
30-40T YFHQC300 Hydraulic 550-650 100-110 800

Mechanical Thumb

Tonnes Type A/mm B/mm C/mm D/mm Weight /Kg
1-2T mechanical 788 610 108 200 32
2-3T mechanical 844 750 108 234 45
3-4T mechanical 1030 800 118 270 87
5-6T mechanical 1287 907 138 270 105
7-8T mechanical 1375 1150 180 310 155
12-14T mechanical 1590 1405 232 400 345
14-18T mechanical 1645 1550 232 400 345
20-25T mechanical 1720 1750 250 450 392

More items, welcome to contact us.
